White Aluminum Sliding Magic Dimming Glass Double Sliding Door Supplier
Specifically designed for high-end projects with 20A insulated glass to achieve good sound insulation. The installation in living rooms, bedrooms and kitchens, etc., works very well and is very popular with consumers.
| Product Origin | CHINA |
|---|---|
| Item NO. | 95-D |
| Color | Customized Color |
| Lead Time | 15-25 days |
| Trade terms | EXW, FOB, CIF, CFR, DDU |
| Shipping Port | Guangzhou |
Call / WhatsApp +1 702 505 2500 · Response within 12 hours
Product features

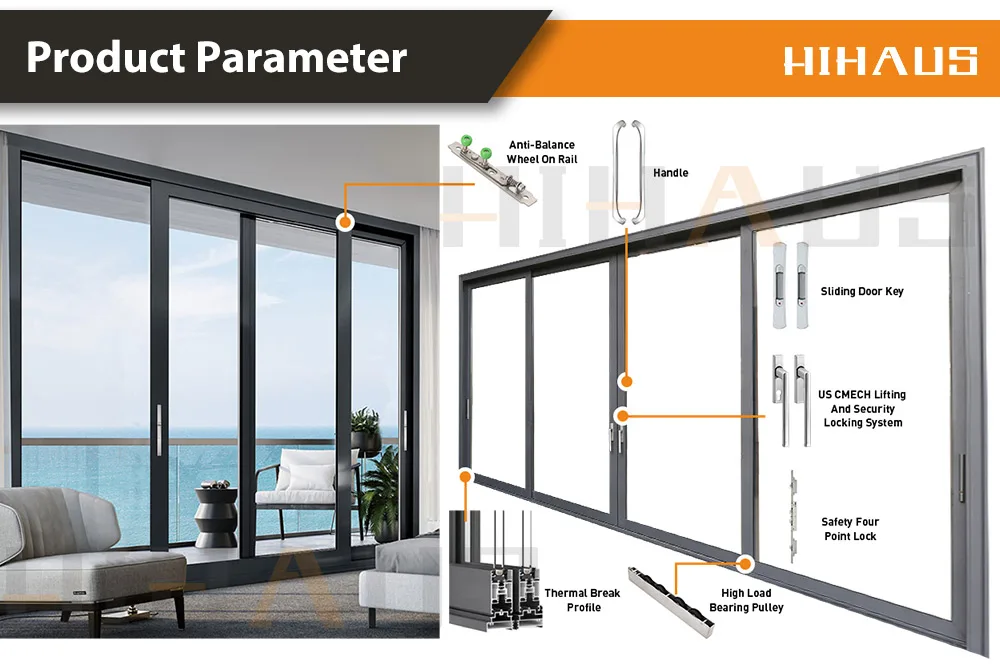

- 1. The wide and flat frame design in the bridge-break system is particularly suitable for demanding locations such as hotels, villas and apartments.
- 2. Extra wide thermal insulation strips of TECHNOFORM brand are used to match the 2.5mm thickness of the thermal break frame profile, which is excellent in sound insulation, thermal insulation, and wind load resistance.
- 3. Adopting 5mm+20A+5mm transparent toughened double glazing and EPDM sealing strips to fix the glass firmly to achieve sound insulation, heat insulation, heat preservation, sealing, safety, and energy saving.
- 4. Imported lifting and sliding hardware system is used to make the door open, stop or lock smoothly in any place.
- 5. Rounded SS304 sliding rail with anti-swing and anti-pry pulleys, each can bear 300kg, safe and stylish.
- 6. Fixed with the smart glass, it will not be broken and scattered by vibration, high safety performance. Also, The smart glass with advantage as follow, thermal insulation, energy saving and environmental protection: the smart glass is double-laminated, which will reduce the thermal conductivity of the glass, heat insulation and good thermal insulation, but also to reduce noise .
- Product Specifications
Product specifications
| Product Name | 95 Series Thermal Break Heavy Duty Sliding Door |
|---|---|
| Material | Thermal Break Aluminum 6063-T5 |
| Color | Customized |
| Glass Type | 5mm+20A+5mm Tempered Double Glass, Optional With Magnetic Manual Control Blinds / Electric Control Blinds / Light Energy Control Blinds |
| Fly screen | SS304 Fly-screen Can Be Optional |
| Hardware | US CMECH |
| Location | Villa, Commercial, Residential, Apartment |
Send us your drawings
Our engineers respond with a system proposal within 24 hours.
Used in these projects
Frequently asked questions
What configurations are available for sliding doors?
Two-track, three-track and multi-panel configurations, with or without integrated flyscreens. Slim-frame and lift-sliding heavy-duty systems are available for large openings.
Can sliding doors be made for hurricane-prone areas?
Yes. We offer reinforced profiles and laminated or impact-rated glazing options for coastal and high-wind regions. Send us your project location and design pressure requirement for a system proposal.
What is the maximum size of a sliding door panel?
Typical single sashes go up to 1500 × 2800 mm depending on the system. Oversized panels are possible with heavy-duty hardware — our engineers confirm feasibility from your drawings.
Do sliding doors come with screens?
Yes. Retractable or track-mounted flyscreens can be integrated into the same frame system.
