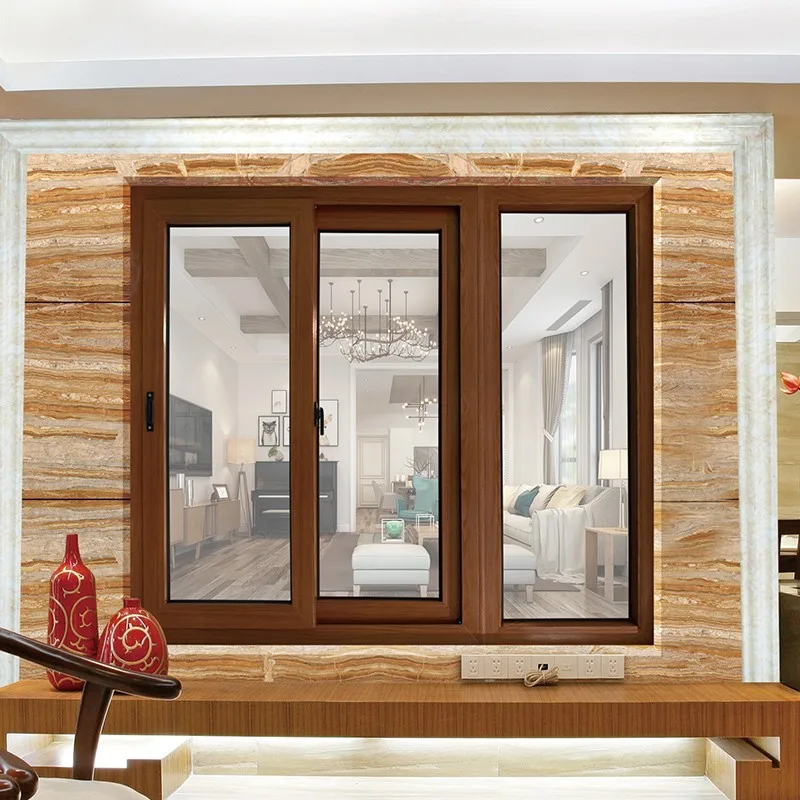

Hihaus Residential Domal Timber Look Slim 2 Lite Slider Aluminium Windows
Timber look Residential domal aluminium windows, 2 lite sliding pane, simple and warm feeling.
NFRC & AAMA testedCustom sizes & colorsFactory-direct
| Product Origin | CHINA |
|---|---|
| Item NO. | ASW60-5 |
| Color | Coffee , Fluorocarbon-Gray , Milk-White |
| Lead Time | 15-25 days |
| Trade terms | EXW, FOB, CIF, CFR, DDU |
| Shipping Port | Guangzhou |
Call / WhatsApp +1 702 505 2500 · Response within 12 hours
Hihaus Residential Domal Timber Look Slim 2 Lite Slider Aluminium WindowsGet Free Quote
Product features
- It can do two-track and three-track push-pull; it can be equipped with stainless steel gauze to meet more design requirements.
- The design of hidden waterproof high and low rails is adopted to strengthen the waterproof and drainage performance; the stainless steel rails are used for smoother sliding.
- The upper track adopts anti-swing positioning wheels, which can be installed and adjusted anti-falling positioning to improve safety.
- The lower rail can be equipped with safety handrails, which is more youthful and fashionable.
- The gauze fan gauze adopts the folding process, and the gauze is installed firmly.
- The lower fixed part can be equipped with a safety fence with a casement window, which has better safety performance.
- Product Specifications
Product specifications
| Production Materials | Aluminum alloy, High strength manganese and magnesium alloy 6063T5 |
|---|---|
| Window Sash | width: 60mm, thickness: 28mm |
| Suggested maximum size of single sash | 800*1500 |
| Glass Specification | 4mm+12A+4mm double tempered glass (smooth, frosted, coated or Low-E glass |
| Sliding Track | Two tracks: 2 glass sash, 4 glass sash Three rails: 2 glass sash with 1 flyscreen, 3 glass sashes, 4 glass with 2 flyscreen |
| Hardware | BOGO auto-lock |
| Wind pressure resistance Strength | Pa≥2500, class 4 |
| (a) Air permeability (air tightness) m3/m.h | (10 Pa) ≤ 1.5, class 6. |
| Water tightness (rainwater infiltration) | Pa ≥ 300, Class 3 |
Send us your drawings
Our engineers respond with a system proposal within 24 hours.
Used in these projects
Frequently asked questions
Do sliding windows seal as well as casements?
Modern sliding systems with brush seals and interlocking sashes reach good air-tightness (Class 6 on tested series). For the highest ratings, we recommend casement or tilt & turn systems.
Can sliding windows be triple glazed?
Yes. Our thermally broken sliding series accepts triple glazing for northern US and Canadian projects.
