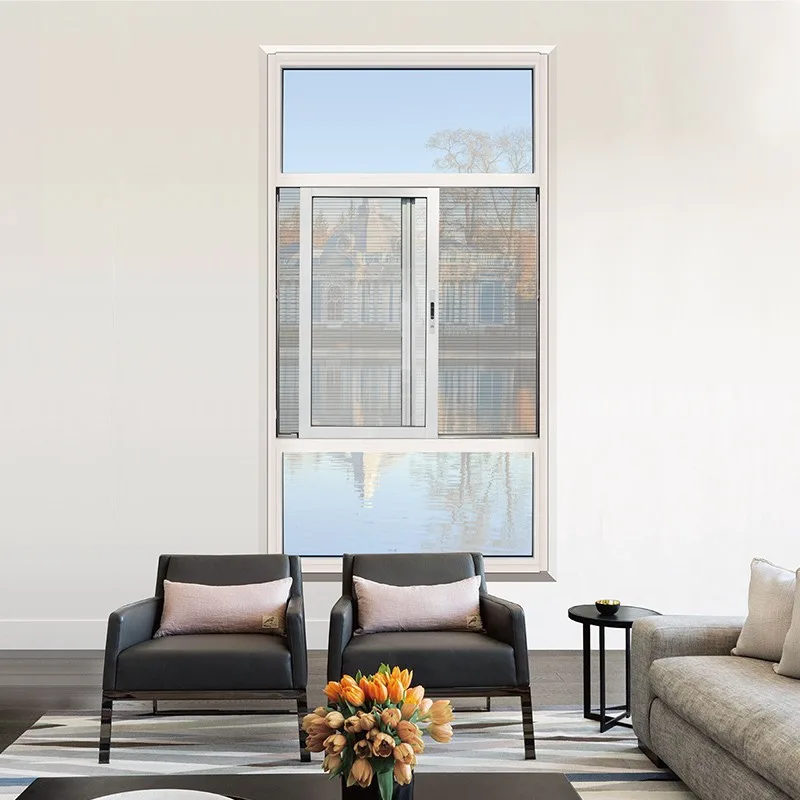

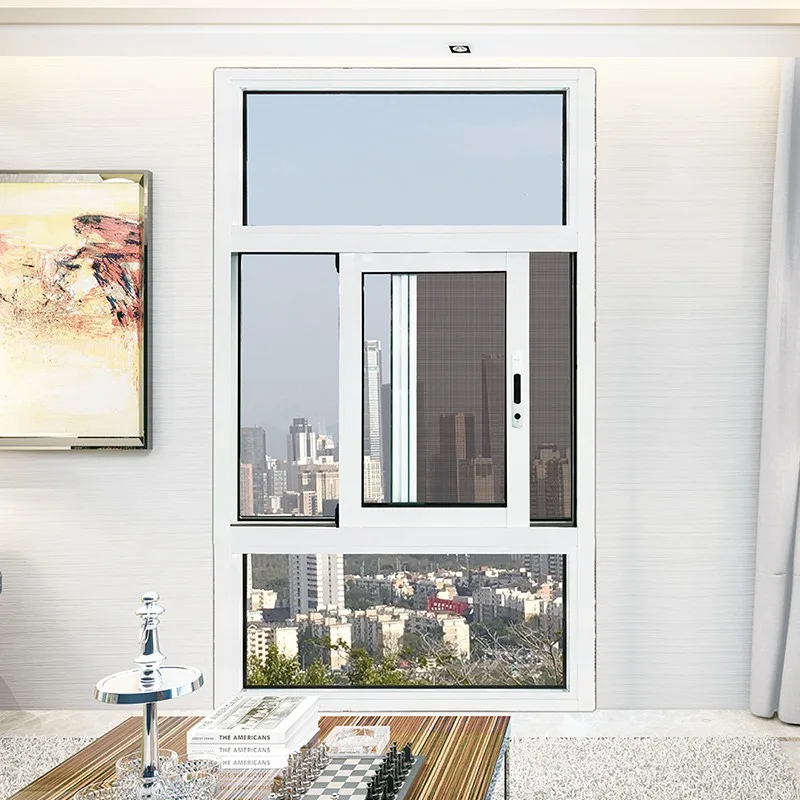

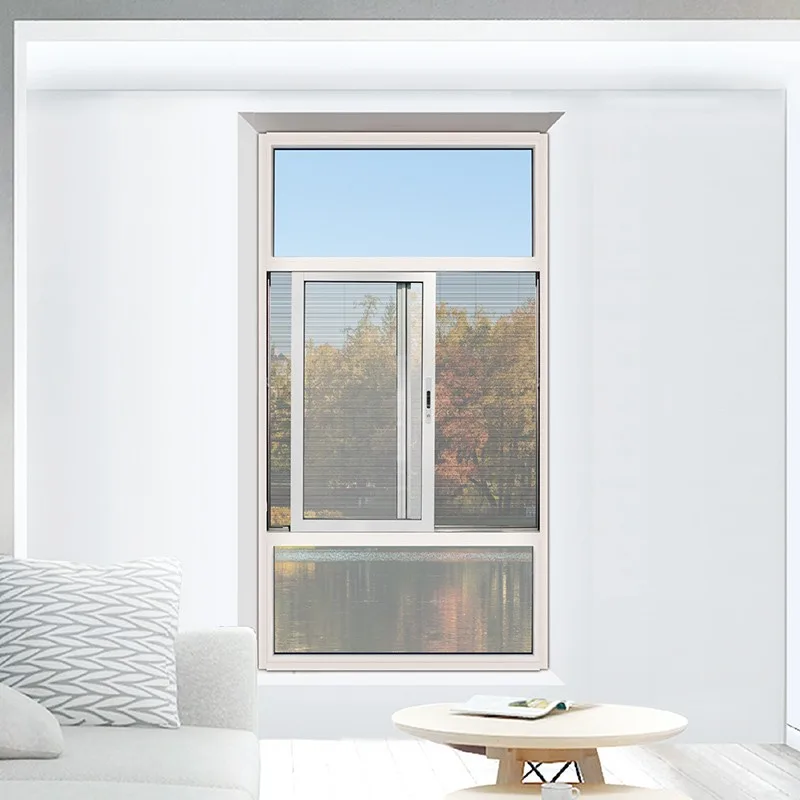

Hihaus Fire Rated Aluminium Double Pane Sliding Egress Window For Home
Fire rated aluminium double pane sliding window with fire rated glass and rolling mosquito net.
NFRC & AAMA testedCustom sizes & colorsFactory-direct
| Product Origin | CHINA |
|---|---|
| Item NO. | ASW60-1 |
| Color | Customized Color |
| Lead Time | 15-25 days |
| Trade terms | EXW, FOB, CIF, CFR, DDU |
| Shipping Port | Guangzhou |
Call / WhatsApp +1 702 505 2500 · Response within 12 hours
Hihaus Fire Rated Aluminium Double Pane Sliding Egress Window For HomeGet Free Quote
Product features
- 4+12A+4 automotive grade double tempered glass. 304 stainless steel high and low rails, push and pull smoothly, not stuck in the groove. The hidden anti-collision rubber block is practical and concise. Paige bar-shaped tie-lock, better anti-theft and anti-prying effect. The anti-dropping pulley of the lower rail ensures that the sliding does not jump off the rail. The upper rail anti-balance wheel device prevents the window sash from swinging. The 7.8 cm narrow window sash provides good lighting, wide field of vision, and stronger vision.
- Product Specifications
Product specifications
| Production Materials | Aluminum alloy, High strength manganese and magnesium alloy 6063T5 |
|---|---|
| Window Sash | width: 60mm, thickness: 28mm |
| Suggested maximum size of single sash | 800*1500 |
| Glass Specification | 4mm+12A+4mm double tempered glass (smooth, frosted, coated or Low-E glass |
| Sliding Track | Two tracks: 2 glass sash, 4 glass sash Three rails: 2 glass sash with 1 flyscreen, 3 glass sashes, 4 glass with 2 flyscreen |
| Hardware | BOGO auto-lock |
| Wind pressure resistance Strength | Pa≥2500, class 4 |
| (a) Air permeability (air tightness) m3/m.h | (10 Pa) ≤ 1.5, class 6. |
| Water tightness (rainwater infiltration) | Pa ≥ 300, Class 3 |
Send us your drawings
Our engineers respond with a system proposal within 24 hours.
Used in these projects
Frequently asked questions
Do sliding windows seal as well as casements?
Modern sliding systems with brush seals and interlocking sashes reach good air-tightness (Class 6 on tested series). For the highest ratings, we recommend casement or tilt & turn systems.
Can sliding windows be triple glazed?
Yes. Our thermally broken sliding series accepts triple glazing for northern US and Canadian projects.
