N100 NFRC U Value Aluminium Casement And Picture Window

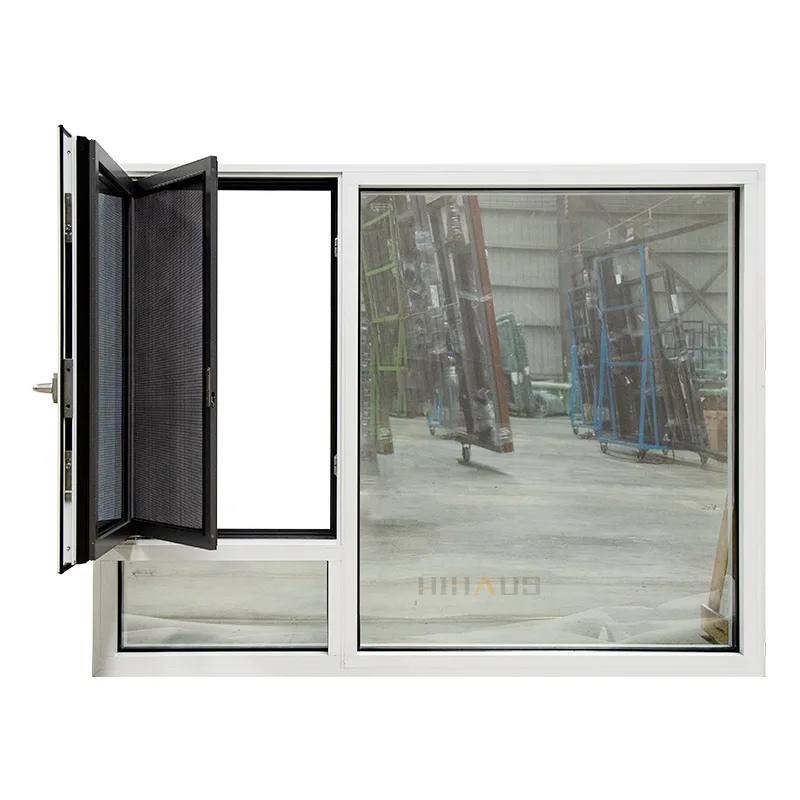

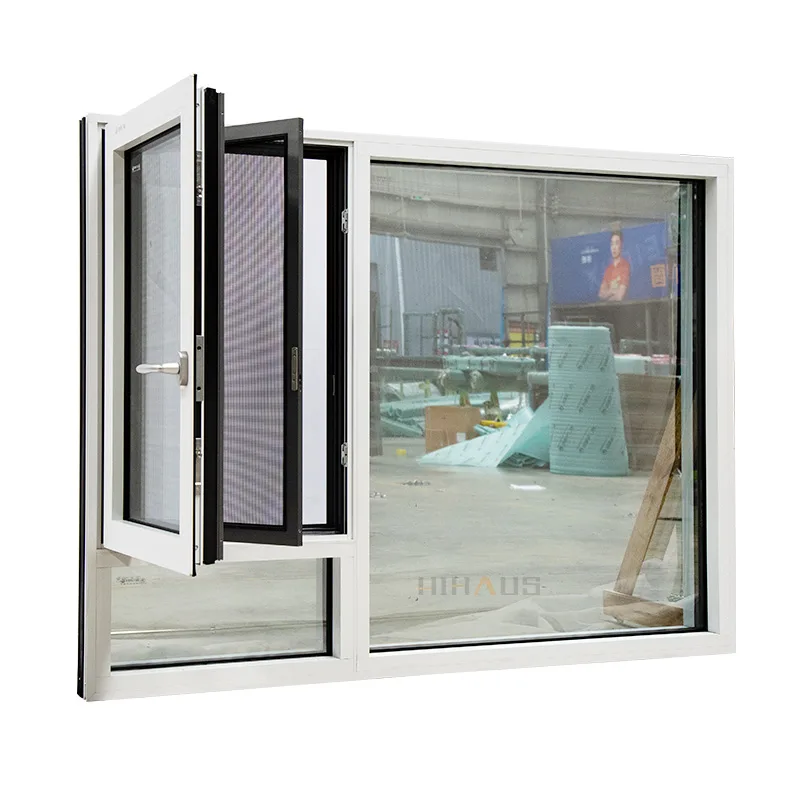

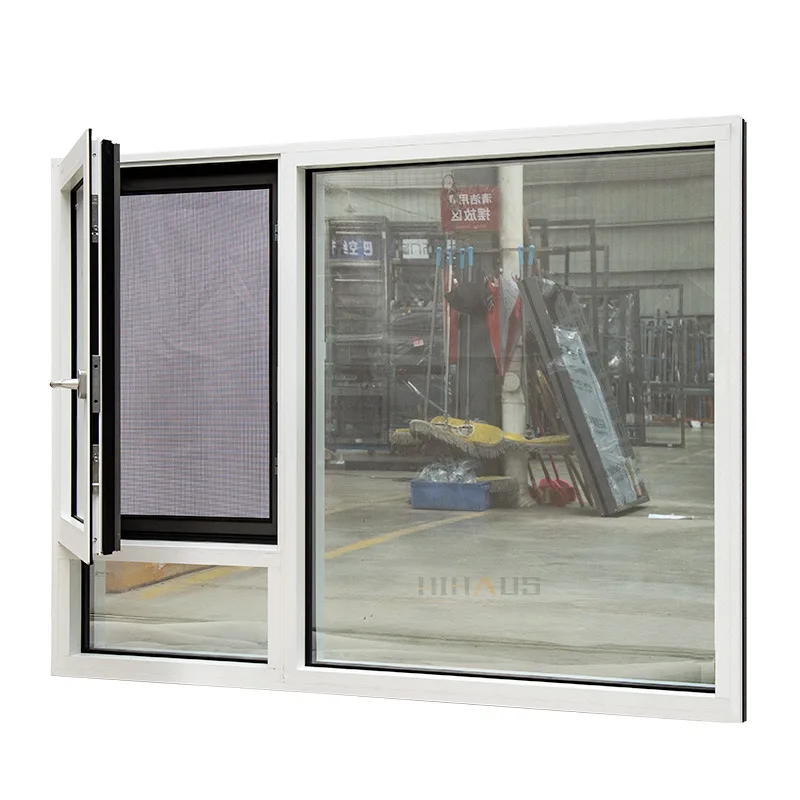

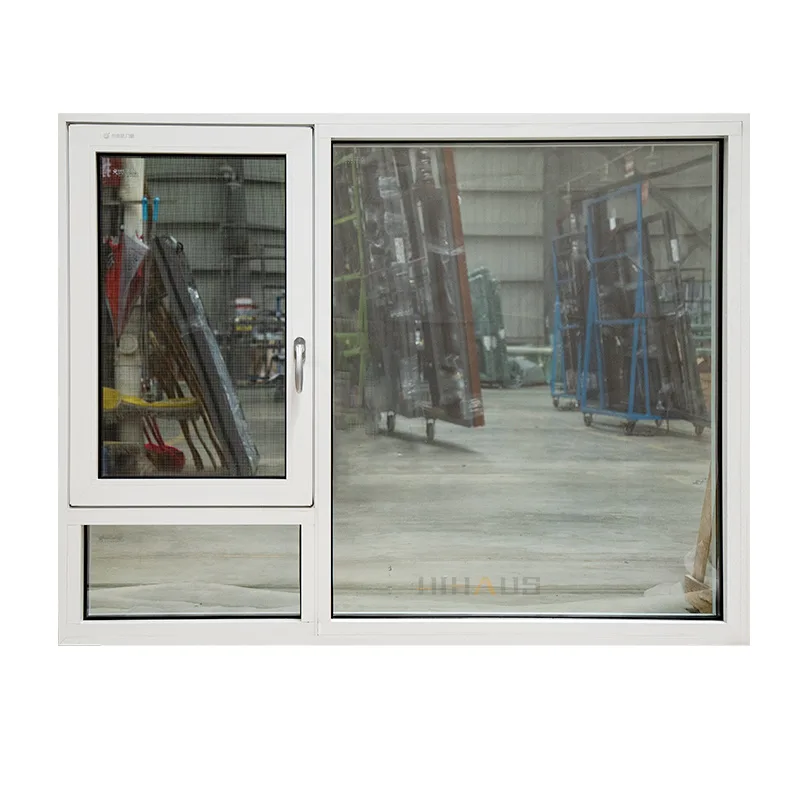

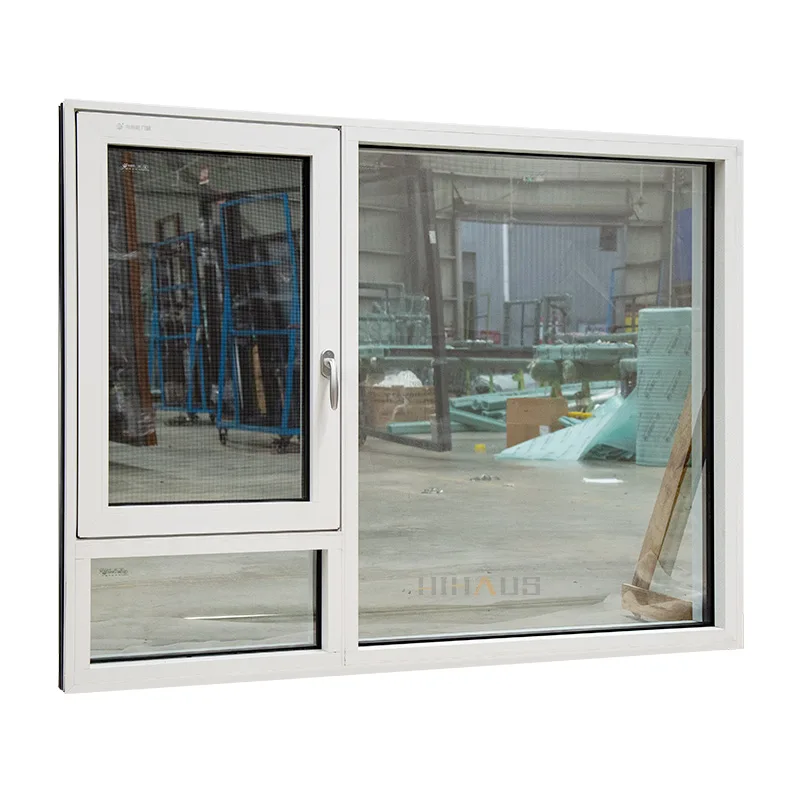

The N100 is an NFRC-certificated aluminium window from Hihaus, designed for residential and commercial space. It combines a casement and a picture window: Picture window offers a wide view,while the operable unit with screen let the fresh air in but keep mosquito out. Since the whole system opens inward, you don't have to worry about strong winds making it hard to close or causing damage.
| Product Origin | CHINA |
|---|---|
| Item NO. | N100 |
| Color | White or Customized Color |
| Lead Time | 15-25 days |
| Trade terms | EXW, FOB, CIF, CFR, DDU |
| Shipping Port | Guangzhou |
Call / WhatsApp +1 702 505 2500 · Response within 12 hours
Product features

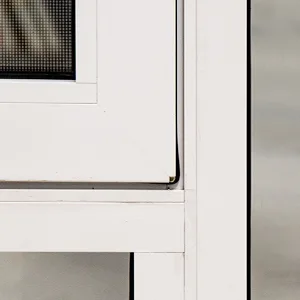

- 1. The window openings feature flush frames inside and out, while the interior screen sashes feature zinc alloy rounded corners for a modern and elegant look.
- 2. The opening part is equipped with triple seals as standard, and the isobaric seal ring adopts an integrated welded corner for enhanced durability.
- 3. Equipped with 304 stainless steel hardware, supporting up to 80KGS and tested for over 30,000 open-close cycles, meeting NFRC window quality standards.
- 4. Available in floor-to-ceiling windows designs with optional glass railings
- Product Specifications
Product specifications
| Product Name | N100 Series double inward casement window |
|---|---|
| Material | 1.8mm Thickness aluminum alloy, high strength manganese and magnesium alloy |
| Max. Single sash size | 750*1450mm |
| Open Style | Double internal opening, glass sash tilt & turn window, screen sash internal casement |
| Glass Specification | 5mm+20A+5mm double tempered glass, optional with 5mm+27A+5mm tempered glass |
| Mesh | Available |
| Hardware | German HOPPE handle |
| Location | Villa, Commercial, Residential, Apartment |
Send us your drawings
Our engineers respond with a system proposal within 24 hours.
Used in these projects
Frequently asked questions
Are your casement windows NFRC / AAMA certified?
Our aluminum window systems have passed American NFRC and AAMA quality testing. Test reports for specific series can be provided with your quotation.
What glazing options are available?
Single, double (e.g. 5+20A+5) and triple glazing, with Low-E, laminated, tempered and built-in blind options.
Can you match traditional or arched styles?
Yes. We produce cottage-pane, bay/bow and arched casement windows, custom-made to your drawings.
