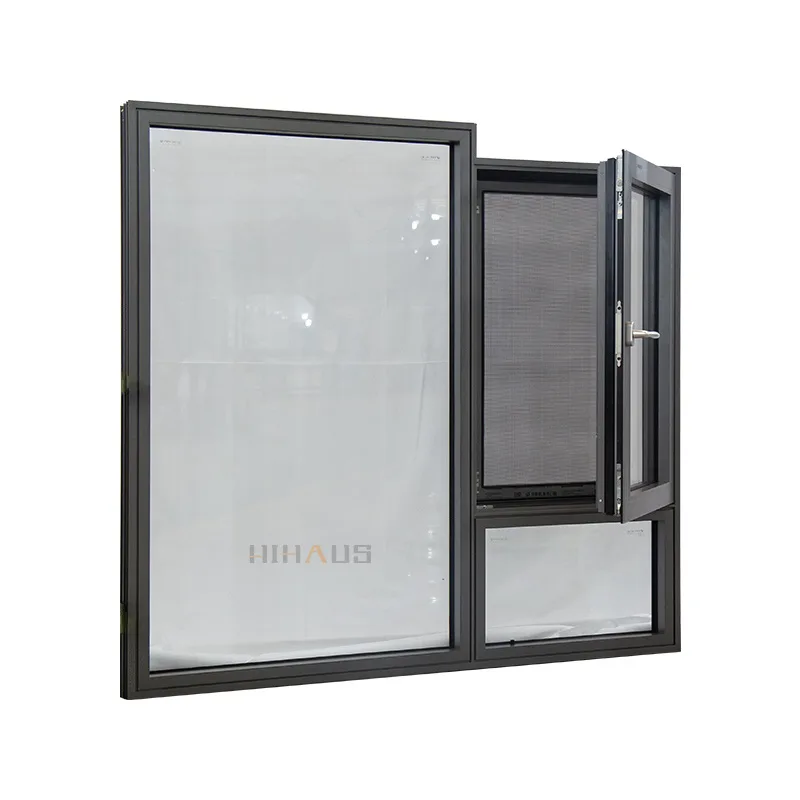

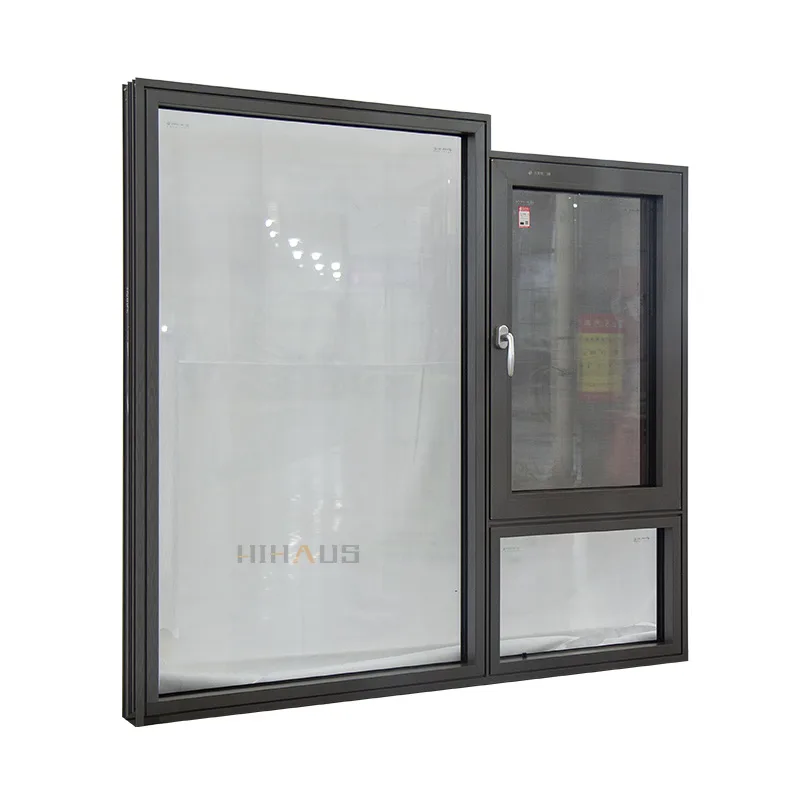

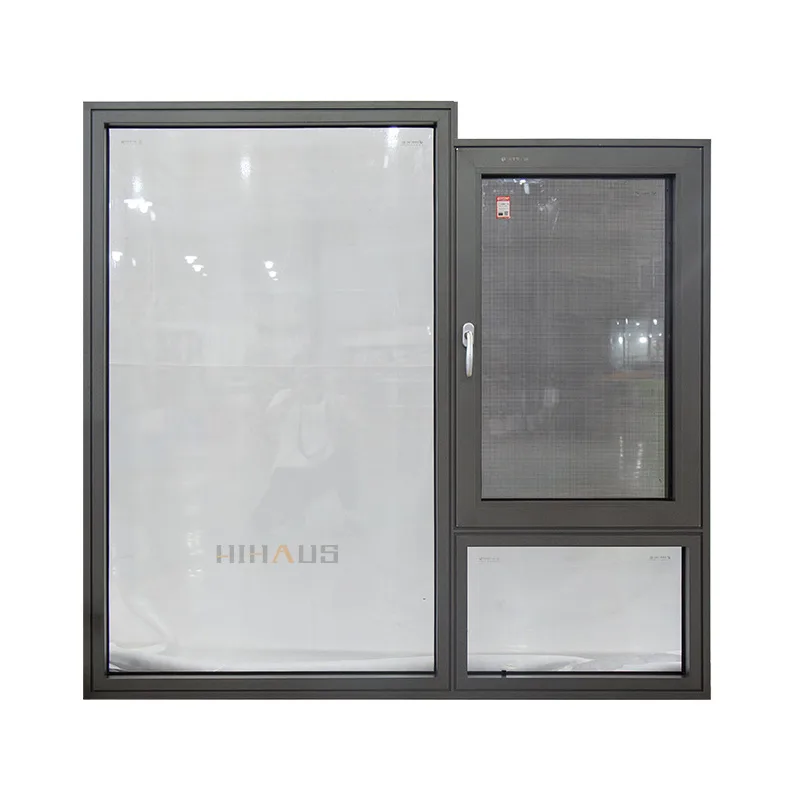

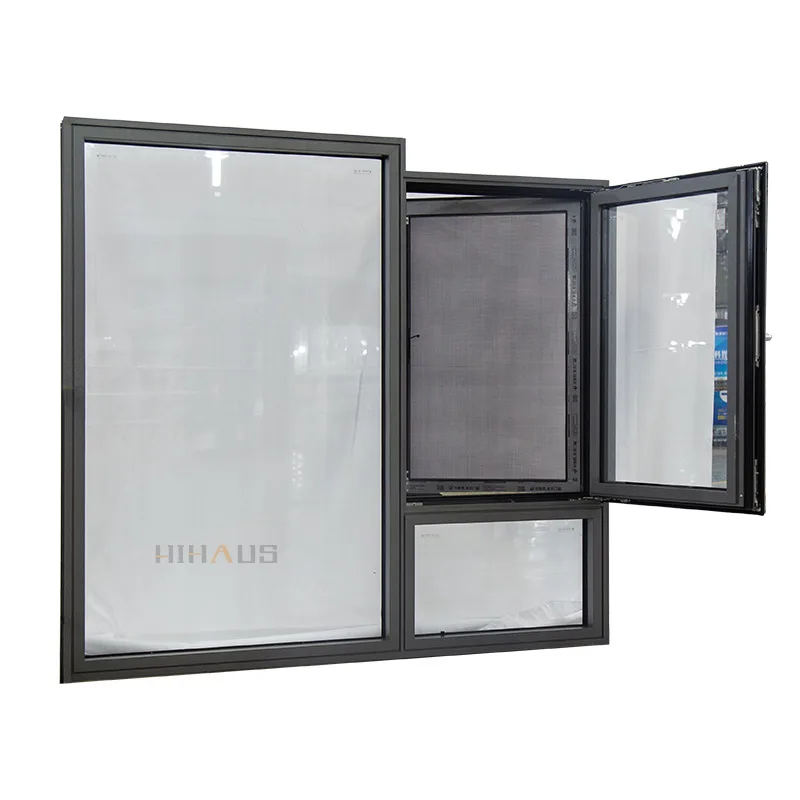

Customized aluminium casement and picture window combination
A combination of casement and picture windows is a popular choice for onwers who want to maximize both ventilation and views. This combination typically involves the installation of a fixed picture window with one or more casement windows on each side.
| Product Origin | CHINA |
|---|---|
| Item NO. | 112 |
| Color | Grey or Customized Color |
| Lead Time | 15-25 days |
| Trade terms | EXW, FOB, CIF, CFR, DDU |
| Shipping Port | Guangzhou |
Call / WhatsApp +1 702 505 2500 · Response within 12 hours

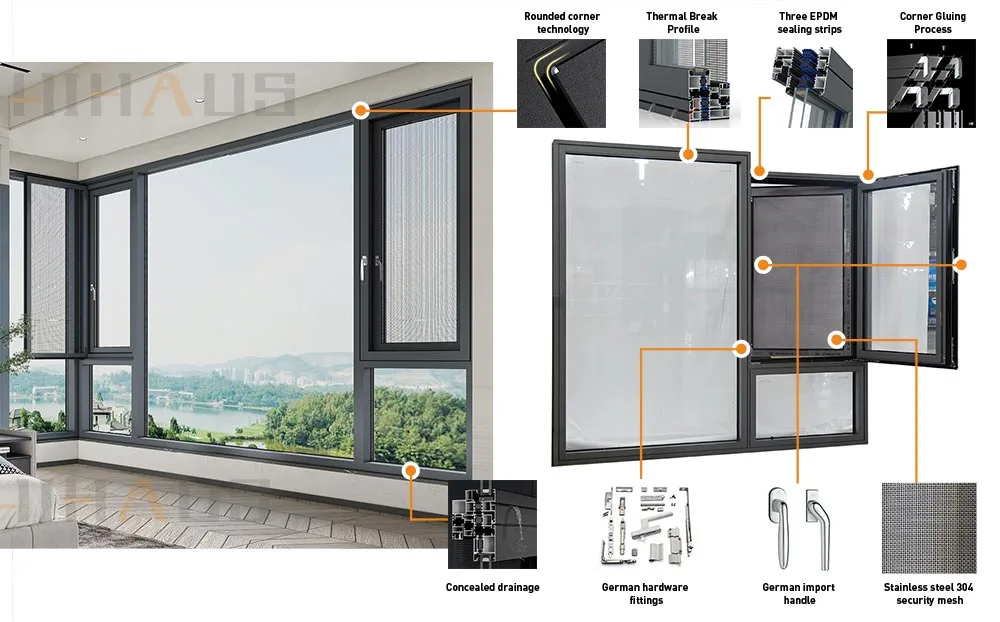

Product features
- 1. Mainly for high-end consumer groups, increase product competitiveness.
- 2. The heat insulation strip of the frame fan uses 35.3MMPA66 heat insulation strip with tempered insulating glass as standard, which has excellent heat insulation and sound insulation effect.
- 3. Using pin injection corner code and injection two-component glue group corner technology, the corner connection strength is higher, and the waterproof sealing performance is better.
- 4.Glass interior design, convenient and safe installation, gauze bending process more secure and stable.
- 5.Accessories by imported hardware accessories, safety and anti-prying lock seat; anti-prying performance is good.
- 6.The drainage structure of the window frame is hidden by the yarn fan base, with the hidden drainage hole to effectively prevent the wind and rain outside.
- Product Specifications
Product specifications
| Product Name | 112 aluminium window series |
|---|---|
| Material | 1.8mm Thickness aluminum alloy, High strength silicon magnesium aluminum alloy |
| Max. Single sash size | 1300*2400mm |
| Open Style | Tilt &turn window & Inverted casement windows & Floor-to-ceiling Windows with insides |
| Glass Specification | 5mm+20A+5mm Hollow tempered glass, optional with 5mm+27A+5mm, tinted glass, Electric louver |
| Mesh | 304 stainless steel net |
| Hardware | German HOPPE handle, German SIEGNIA Concealed hinge, DIAOSI/HIHAUS Special secret lock |
| Location | Villa, Commercial, Residential, Apartment |
Send us your drawings
Our engineers respond with a system proposal within 24 hours.
Used in these projects
Frequently asked questions
Are your casement windows NFRC / AAMA certified?
Our aluminum window systems have passed American NFRC and AAMA quality testing. Test reports for specific series can be provided with your quotation.
What glazing options are available?
Single, double (e.g. 5+20A+5) and triple glazing, with Low-E, laminated, tempered and built-in blind options.
Can you match traditional or arched styles?
Yes. We produce cottage-pane, bay/bow and arched casement windows, custom-made to your drawings.
